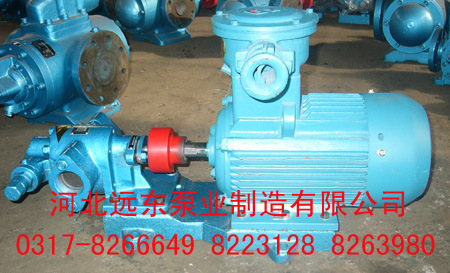

KCB83.3齿轮泵机械密封用UM3-20机械密封寿命长

KCB齿轮油泵在输油系统中可用作传输、增压泵；KCB gear oil pump in the oil system can be used as a transport, booster pump;

在燃油系统中可用作输送、加压、喷射的燃油泵；In the fuel system can be used as a transport, pressure, jet fuel pump;

在   工业中，均可作润滑油泵用。In all industrial areas, can be used as lubricating oil pump.

KCB齿轮泵主要有齿轮、轴、泵体、   阀、轴端密封所组成。齿轮经热处理有较高的硬度和强度，与轴一同安装在可   换的轴套内运转。泵内全部零件的润滑均在泵工作时利用输出介质而自动达到。KCB gear pump are mainly gear, shaft, pump body, valve, shaft end seal. Gear after heat treatment with high hardness and strength, and shaft installed in the replaceable shaft sleeve. In all parts of the lubrication pump are pump work automatically to achieve using the output media.

泵内有的泄油和回油槽，是齿轮在工作中承受的扭矩力   小，因此轴承负荷小，磨损小，泵。Pump is the drainage and back into the groove of reasonable design, is a gear in the work under the minimum torque force, so the bearing load is small, wear small, pump with high efficiency.

泵设有   阀作为超载保护，   阀的全回流压力为泵额定排除压力的1.5倍，也可在允许排出压力范围内根据实际需要另外调整。但注意本   阀不能作减压阀的长期工作，需要时可在管路上另行安装。从主轴外伸端向泵看，为顺时针旋转。Pump is equipped with safety valve as overload protection, the total reflux pressure relief valve is rated pump out pressure of 1.5 times, also can allow discharge pressure range according to actual needs and adjust. But note that this cannot be a long-term work pressure reducing valve, relief valve can be installed in the piping shall be separately when necessary. To pump from the main shaft overhang end to see, for clockwise.

流量：1.1m3/h-600m3/h压力：0.28MPa--2.5MPa Traffic: 1.1 m3 / h - 600 m3 / h pressure: 0.28 MPa, 2.5 MPa

主要用于油田、油库、港口、码头、船舶等大流量输油，卸油！Mainly used in oil fields, oil depot, ports, docks, ship big flow like oil, oil unloading!

应用范围:KCB/2CY型齿轮输油泵适用于输送粘度在300c.s.t以下的各种油类，如原油、柴油、润滑油、动植物油等。配用铜齿轮可输送低闪点液体，如汽油、苯等。介质温度不超过70℃，油泵的使用温度不超过300℃。本泵身带有   阀，超载时起   作用。轴封有骨架油封、机械密封、填料密封三种型式，订货注明。KCB齿轮润滑泵主要用于各种机械设备中的润滑系统中输送润滑油，适用于输送粘度在10oE（75c.s.t）以下，温度在300℃以下的具有润滑性的油料，不锈钢齿轮泵可输送食用油料、饮料等。轴封有骨架油封、机械密封、填料密封三种型式.Scope of application: KCB type / 2 cy gear oil pump is suitable for conveying viscosity at 300 c. S.t under various oil, such as crude oil, diesel oil, lubricating oil, animal and plant oil. With copper gear can handle liquid low flash point, such as gasoline, benzene, etc. Medium temperature does not exceed 70 ℃, the use of high temperature resistant oil pump temperature does not exceed 300 ℃. When the pump body with a safety valve, overloading security role. Shaft seal skeleton oil seal, mechanical seal, packing three type, indicate the order. KCB gear lubrication pump is mainly used for all kinds of mechanical equipment of conveying lubricating oil in the lubricating system, suitable for conveying viscosity in 10 oe (below 75 c. S.t), the temperature is below 300 ℃ with lubrication oil, stainless steel pump can transport edible oil, beverage and so on. Shaft seal skeleton oil seal, mechanical seal, packing three types.

KCB齿轮泵安装说明:1、安装泵的地点应足够宽敞，以方便检修工作。2、泵安装的好坏，对泵的平稳运行和使用寿命有很重要的影响，所以安装校正工作   仔细地进行，不得草率行事。3、泵吸入管的安装高度、长度和管径应满足计算值，力求简短，减少不   的损失（如弯头等）；并泵在工作时，不超过其允许汽蚀余量。4、吸入和排出管路应该有支架。泵不允许承受管路的负荷。KCB gear pump installation instructions: 1, the location of the installation of pump should be spacious enough, to facilitate maintenance and repair work. The stand or fall of 2, pump installation, for the smooth running of the pump and service life have very important influence, so the installation calibration work must be carried out carefully and must not be too hasty. 3, installation height of pump suction pipe, the length and diameter should satisfy the calculated value, to short, reduce unnecessary losses, such as elbow, etc.); And ensure the pump at work, no more than the allowed NPSH. 4, suction and discharge line should be a support. Pump are not allowed to bear load of pipeline.

高粘度抽料泵 HSG940×2-40 河南联创化工有限公司

输送污油泵 HSJ660-46 金能科技有限责任公司

输送沥青泵 HSNH940-46 Q=928L/min 中盐常州化工股份有限公司

输送化工原料泵 3GrH100×2-38U12.1W2 江苏天容集团股份有限公司

输送胶水泵 SNH80R46E6.7W23三螺杆泵 平顶山煤业（集团）许昌   山焦化有限公司

输送糖浆泵 SNH210R40E6.7W21 上海和氏璧化工有限公司

树脂泵 SNH210R40E6.7W23三螺杆泵 山东华鲁恒升集团有限公司

沥青混合料泵 NYP320B高粘度抽料泵 安徽中鼎控股（集团）有限公司

输送煤焦油泵 SNH210R40E6.7W23三螺杆泵 山东海龙股份有限公司

燃油喷射泵 SMH80R46E6.7W23三螺杆泵 山东潍焦集团有限公司

石蜡输送泵 SMH80R42E6.7W23三螺杆泵 河南天冠企业集团有限公司

沥青混合料泵 NYP220高粘度抽料泵 黄海造船有限公司

沥青输送泵 SMH80R42E6.7W23三螺杆泵头 烟台来福士海洋工程有限公司

液压油泵 SNH120R46E6.7三螺杆泵头 扬州科进船业有限公司

汽油输送泵 SNH280R46U12.1W21三螺杆泵头 舜天造船（扬州）有限公司

船用柴油机喷油泵 SNH40R46E6.7W2三螺杆泵头 中国人民解放军第4808厂

高粘度乳液泵 NYP50高粘度乳液泵 福建省东南造船厂

原油输送泵 SNH660L54U12.1W2三螺杆泵泵头 天津新河船舶重工有限责任公司

染料输送泵 SNH210R54U12.1W21泵头 江苏省镇江船厂有限责任公司

燃料油装船泵 SNH80R54U12.1W2三螺杆泵头 国营川东造船厂

燃料油装汽车泵 SNH80R54U12.1W2三螺杆泵头 大连辽南船厂（中国人民解放军第四八一零工厂）

燃料油装火车泵 SNH80R54U12.1W2三螺杆泵头 江苏韩通船舶重工有限公司

重油装船泵 SNH80R54U12.1W2三螺杆泵 浙江海丰造船有限公司

石油输送泵 SNS120R54U12.1W2立式三螺杆泵 芜湖新联造船有限公司

炭黑油循环泵 SNS210R54U12.1W2立式三螺杆泵 中国长江航运集团江东船厂

输送枣汁泵 NYP24-RU-T1W-51高粘度泵 江西江洲联合造船有限责任公司

糖蜜输送泵 SNS40R46U12.1W2三螺杆泵头带支架 淮滨县江淮船业有限公司

润滑油输送泵 SNH440R46E6.7W21三螺杆泵头 山东省威海船厂

重油输送泵 SNH440R46E6.7W21三螺杆泵头 辽宁宏冠船业有限公司

沥青加压输送泵 NYP50高粘度抽料泵 大连船舶重工舾装有限公司

输送苏氨酸泵 G40-2V-W112单螺杆泵减速 九江银星造船有限公司

焦油输送泵 SNH1300R46E6.7W21三螺杆泵头 山东大鱼岛造船有限公司

输送矿物油泵 SNH1700R42E6.7W23三螺杆泵头 荣成市寻山兴海造船有限责任公司

矿物油输送泵 KCB-483.3 内蒙大唐托克托发电公司

电动燃油泵 SMH120R42E6.7W21 保定余热电厂

泊东泵业制造有限公司坐落于铸造名乡—河北省泊头市。公司占地面积38650平方米，建筑面积20300平方米，是国内   的集设计、铸造、生产、销售、服务于一体的容积泵制造厂家。公司始建于1984年,有二十几年研制经验。目前产品设计采用   水平实体设计软件；产品、制造、检验、交付按照ISO9001质量管理体系控制过程质量；产品制造广泛使用加工中心、数控机床、精机、高精设备；检测设备拥有   工具显微镜、渐开线检测仪、光学投影仪、   测齿仪、脉冲辉光离子氮化炉等大型检测设备，并建有   B级试验站。本厂以   的产品水平、   的售后服务、恪守信用而在市场上倍受欢迎，产品   不衰，赢得了用户的普遍赞誉。公司已通过ISO9001：2000   质量体系认证，中国船级社CCS型式认证，法国船级社BV产品工厂认证，   船级社ABS产品质量认证，中国渔业船舶检验局船用泵认证,成为中石油物资资源市场成员、中石化物资资源市场成员。河北省产品生产企业，船用泵产品承制企业。Hebei far east pump industry manufacturing co., LTD is located in botou city, hebei province, a casting of the township.The company covers an area of 38650 square meters, construction area of 20300 square meters, is the domestic famous design, casting, production, sales and service in one of the positive displacement pump professional manufacturer.Company was founded in 1984, has 20 years experience in professional development.The current product design adopts the international advanced level entity design software;Product research and development, manufacture, inspection, delivery, in accordance with the ISO9001 quality management system of process quality control;Widely used products manufacturing processing center, numerical control machine tools, precision machine, high precision equipment;Testing equipment has universal tool microscope, involute tester, optical projector, universal gear tester, pulse glow ion nitriding furnace and other large-scale testing equipment, and built national B level test station.The factory with the first-class products, excellent after-sales service, abide by credit and popular in the market, the products sell well and win the user's universal praise.The company has passed ISO9001:2000 international quality system certification, China classification society CCS type approval, bureau veritas BV products factory certification, the United States classification society ABS product quality certification, China's Marine fishing vessel inspection bureau pump certification, has been a member of the material resource market in oil, sinopec material resources market member.Well-known products production enterprise in hebei province, Marine pump products enterprises.

公司以“泊泊东”牌齿轮泵，螺杆泵为主导产品，涉及21个系列，4200多种规格，年生产能力达43000多台（套）。产品行销油田、化工、电力、船舶、冶金、食品等各大行业。产品除满足国内客商的需求外，部分出口至东南亚、美洲、欧洲等   和地区。公司在   各大城市设有30多个分支机构，并建立了完善的营销服务网络，拥有一支庞大敬业的营销服务队伍，可为广大客户提供   的服务。 公司以严谨的质量体系、的生产设备、完善的检测手段、丰富的制造经验、务真求实的泊东团队，来产品质量。以满腔真诚期待与各界人士携手铸就多方共赢的辉煌。Company to "moored far east" brand gear pump, screw pump for the leading product, involves the 21 series, more than 4200 kinds of specifications, annual production capacity of more than 43000 Taiwan (sets).Product marketing oilfield, chemical industry, electric power, shipbuilding, metallurgy, food and other major industry.Products in addition to meet the needs of domestic customers, some exports to southeast Asia, the americas, Europe and other countries and regions.The company has more than 30 branches in major cities throughout the country, and established a perfect marketing service network, has a large professional marketing services team, can provide the high quality service for the customers.Companies with strict quality system, advanced production equipment, perfect detection means, rich manufacturing experience and WuZhen strives for the far east team, to effectively ensure the quality of products.To sincerely look forward to working with people from all walks of life both at home and abroad hand in hand to own a bright multi-win-win situation.

我公司是一个生产齿轮油泵和螺杆泵的公司。公司拥有各种设备80台,主要设备有：C6140 CW6163C车床24台，TX611C/4镗床2台，M131M7130磨床8台，C12立车2台，Y318K Y3150E滚齿机6台，E3050X16/1摇臂钻床2台，E5163立式钻床2台，B1-400   铣床3台，螺杆泵转子QH2-007铣床1台，半自动螺旋转子QH2-029B铣床2台，X53K立铣3台，半自动螺旋转子QH2-031 QH2-032磨刃机台。My company is a company specialized in the production of gear oil pump and screw pump.Company has 80 sets of various devices, the main equipment are: C6140 CW6163C 24 sets of lathe, TX611C/boring machine 2 units, 4 M131M7130 grinding machine 8 units, C12 set, 2 sets, Y318K Y3150E hobbing machine 6 units, E3050X16/1 radial drilling machine 2 sets, E5163 vertical drilling machine 2 sets, B1-400 universal milling machine 3 units, screw pump rotor 1 QH2-007 milling machine, semi-automatic screw rotor QH2-029 - b milling machine 2 sets, X53K three vertical milling, semi-automatic screw rotor QH2 QH2-031-031 edge grinding machine is used.

    我公司拥有省计量局制试验台1台，自制试验台3台，使生产产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率 100% ，具备较强的综合配套制造能力。理化试验室、长度计量室是   计量确认合格单位，使产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率100% ，具备较强的综合配套制造能力，公司年可生产各种泵 6000 多台。My company has the province system test bench 1 bureau of standard measurement, homemade test-bed 3 units, production of products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 100%, have strong ability of comprehensive manufacturing.Physical and chemical laboratory, length measuring room is the national metrological confirmation unit, make our products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 100%, have strong comprehensive manufacturing capacity, company can produce all kinds of pump in more than 6000 units.

运费说明:

1.本公司常规产品1-3天发货,要求或者需定做的产品发货时间已与客户协商为准, 2.泵运费方式有两种:快递和物流.小泵和小型配件发快递,其余体积较大,数量较多,推荐走专线物流货运,一般南方,中部地区及沿海地区3-5天左右到达.西部,北部较远的地区以及少数二次中转地区5-8天左右可到,具体覆盖范围请咨询公司客服人员.安装使用:请您根据产品说明书的步骤进行操作,如有问题,请联系我公司,我公司将会请   的技术人员为您提供服务.为了保护您的利益,我们已经提醒客户在收到货物时,要开箱验货,如在打开验货时发现货物丢失,损害或者不符,请拒绝签收,您签收就代表已准确无误的收到后屋,若在签收货物之后才发现货物丢失或者不符,如不负责. 客户收到货后,产品无法安装或者规格有误,本公司提供退货或者换货服务,退货或者换货的客户请货物的完好无损,并承担往返运费. 客户收到后,如果产品存在质量问题,请在收货后7天内联系我公司,提供相关质量问题图片,我公司将在   时间给您退货或者换货,因为我公司已经在发货前已经仔细检查过,所以过期将不提供此项服务,还请谅解.Shipping details:1. Our regular products 1-3 days of delivery, special requests or need to custom-made product delivery time is already negotiate with customer, 2. The pump freight way has two kinds: express and logistics. Small pump and small accessories send express, the rest of the volume is larger, the number is more, recommend special line logistics, freight, generally south, central and coastal area about 3 to 5 days to arrive. In the west, north of remote areas and areas inhabited by minority secondary transit, about five to eight days to specific coverage please consulting company customer service staff. Install and use, please according to the product manual steps, if any problem, please contact our company, we advise you that we will be the most professional and technical personnel to provide service for you. In order to protect your interests, when we have to remind the customer receive the goods, unpacking inspection, such as when open the inspection found that the goods lost, damage or discrepancy, please refuse to sign after receiving STH, you sign after receiving STH means have accurate received after the house, if after receipt of goods found the goods didn't agree lost or, if not responsible. Customers after receiving the goods, the product can't install or specification is wrong, the company provides the return or exchange service, return or exchange the customers please make sure that the goods are intact, and bear the freight back and forth. The receipt of the customer, if the product quality problems, please contact me within 7 days after receiving the company, provide relevant quality problem photos, our company will give you a refund or a replacement in the first time, because I already

泊东泵业制造有限公司坐落于铸造名乡—河北省泊头市。公司占地面积38650平方米，建筑面积20300平方米，是国内   的集设计、铸造、生产、销售、服务于一体的容积泵制造厂家。公司始建于1984年,有二十几年研制经验。目前产品设计采用   水平实体设计软件；产品、制造、检验、交付按照ISO9001质量管理体系控制过程质量；产品制造广泛使用加工中心、数控机床、精机、高精设备；检测设备拥有   工具显微镜、渐开线检测仪、光学投影仪、   测齿仪、脉冲辉光离子氮化炉等大型检测设备，并建有   B级试验站。本厂以   的产品水平、   的售后服务、恪守信用而在市场上倍受欢迎，产品   不衰，赢得了用户的普遍赞誉。公司已通过ISO9001：2000   质量体系认证，中国船级社CCS型式认证，法国船级社BV产品工厂认证，   船级社ABS产品质量认证，中国渔业船舶检验局船用泵认证,成为中石油物资资源市场成员、中石化物资资源市场成员。河北省产品生产企业，船用泵产品承制企业。Hebei far east pump industry manufacturing co., LTD is located in botou city, hebei province, a casting of the township.The company covers an area of 38650 square meters, construction area of 20300 square meters, is the domestic famous design, casting, production, sales and service in one of the positive displacement pump professional manufacturer.Company was founded in 1984, has 20 years experience in professional development.The current product design adopts the international advanced level entity design software;Product research and development, manufacture, inspection, delivery, in accordance with the ISO9001 quality management system of process quality control;Widely used products manufacturing processing center, numerical control machine tools, precision machine, high precision equipment;Testing equipment has universal tool microscope, involute tester, optical projector, universal gear tester, pulse glow ion nitriding furnace and other large-scale testing equipment, and built national B level test station.The factory with the first-class products, excellent after-sales service, abide by credit and popular in the market, the products sell well and win the user's universal praise.The company has passed ISO9001:2000 international quality system certification, China classification society CCS type approval, bureau veritas BV products factory certification, the United States classification society ABS product quality certification, China's Marine fishing vessel inspection bureau pump certification, has been a member of the material resource market in oil, sinopec material resources market member.Well-known products production enterprise in hebei province, Marine pump products enterprises.

    公司以“泊泊东”牌齿轮泵，螺杆泵为主导产品，涉及21个系列，4200多种规格，年生产能力达43000多台（套）。产品行销油田、化工、电力、船舶、冶金、食品等各大行业。产品除满足国内客商的需求外，部分出口至东南亚、美洲、欧洲等   和地区。公司在   各大城市设有30多个分支机构，并建立了完善的营销服务网络，拥有一支庞大敬业的营销服务队伍，可为广大客户提供   的服务。 公司以严谨的质量体系、的生产设备、完善的检测手段、丰富的制造经验、务真求实的泊东团队，来产品质量。以满腔真诚期待与各界人士携手铸就多方共赢的辉煌。Company to "moored far east" brand gear pump, screw pump for the leading product, involves the 21 series, more than 4200 kinds of specifications, annual production capacity of more than 43000 Taiwan (sets).Product marketing oilfield, chemical industry, electric power, shipbuilding, metallurgy, food and other major industry.Products in addition to meet the needs of domestic customers, some exports to southeast Asia, the americas, Europe and other countries and regions.The company has more than 30 branches in major cities throughout the country, and established a perfect marketing service network, has a large professional marketing services team, can provide the high quality service for the customers.Companies with strict quality system, advanced production equipment, perfect detection means, rich manufacturing experience and WuZhen strives for the far east team, to effectively ensure the quality of products.To sincerely look forward to working with people from all walks of life both at home and abroad hand in hand to own a bright multi-win-win situation.

我公司是一个生产齿轮油泵和螺杆泵的公司。公司拥有各种设备80台,主要设备有：C6140 CW6163C车床24台，TX611C/4镗床2台，M131M7130磨床8台，C12立车2台，Y318K Y3150E滚齿机6台，E3050X16/1摇臂钻床2台，E5163立式钻床2台，B1-400   铣床3台，螺杆泵转子QH2-007铣床1台，半自动螺旋转子QH2-029B铣床2台，X53K立铣3台，半自动螺旋转子QH2-031 QH2-032磨刃机台。My company is a company specialized in the production of gear oil pump and screw pump.Company has 80 sets of various devices, the main equipment are: C6140 CW6163C 24 sets of lathe, TX611C/boring machine 2 units, 4 M131M7130 grinding machine 8 units, C12 set, 2 sets, Y318K Y3150E hobbing machine 6 units, E3050X16/1 radial drilling machine 2 sets, E5163 vertical drilling machine 2 sets, B1-400 universal milling machine 3 units, screw pump rotor 1 QH2-007 milling machine, semi-automatic screw rotor QH2-029 - b milling machine 2 sets, X53K three vertical milling, semi-automatic screw rotor QH2 QH2-031-031 edge grinding machine is used.

我公司拥有省计量局制试验台1台，自制试验台3台，使生产产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率 100% ，具备较强的综合配套制造能力。理化试验室、长度计量室是   计量确认合格单位，使产品从原材料投入到产成品出厂实现了全过程检测。产品出厂合格率100% ，具备较强的综合配套制造能力，公司年可生产各种泵 6000 多台。My company has the province system test bench 1 bureau of standard measurement, homemade test-bed 3 units, production of products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 100%, have strong ability of comprehensive manufacturing.Physical and chemical laboratory, length measuring room is the national metrological confirmation unit, make our products from raw materials into finished goods factory implements the whole process of detection.Product factory qualified rate 100%, have strong comprehensive manufacturing capacity, company can produce all kinds of pump in more than 6000 units.

运费说明:

1.本公司常规产品1-3天发货,要求或者需定做的产品发货时间已与客户协商为准, 2.泵运费方式有两种:快递和物流.小泵和小型配件发快递,其余体积较大,数量较多,推荐走专线物流货运,一般南方,中部地区及沿海地区3-5天左右到达.西部,北部较远的地区以及少数二次中转地区5-8天左右可到,具体覆盖范围请咨询公司客服人员.安装使用:请您根据产品说明书的步骤进行操作,如有问题,请联系我公司,我公司将会请   的技术人员为您提供服务.为了保护您的利益,我们已经提醒客户在收到货物时,要开箱验货,如在打开验货时发现货物丢失,损害或者不符,请拒绝签收,您签收就代表已准确无误的收到后屋,若在签收货物之后才发现货物丢失或者不符,如不负责. 客户收到货后,产品无法安装或者规格有误,本公司提供退货或者换货服务,退货或者换货的客户请货物的完好无损,并承担往返运费. 客户收到后,如果产品存在质量问题,请在收货后7天内联系我公司,提供相关质量问题图片,我公司将在   时间给您退货或者换货,因为我公司已经在发货前已经仔细检查过,所以过期将不提供此项服务,还请谅解.Shipping details:1. Our regular products 1-3 days of delivery, special requests or need to custom-made product delivery time is already negotiate with customer, 2. The pump freight way has two kinds: express and logistics. Small pump and small accessories send express, the rest of the volume is larger, the number is more, recommend special line logistics, freight, generally south, central and coastal area about 3 to 5 days to arrive. In the west, north of remote areas and areas inhabited by minority secondary transit, about five to eight days to specific coverage please consulting company customer service staff. Install and use, please according to the product manual steps, if any problem, please contact our company, we advise you that we will be the most professional and technical personnel to provide service for you. In order to protect your interests, when we have to remind the customer receive the goods, unpacking inspection, such as when open the inspection found that the goods lost, damage or discrepancy, please refuse to sign after receiving STH, you sign after receiving STH means have accurate received after the house, if after receipt of goods found the goods didn't agree lost or, if not responsible. Customers after receiving the goods, the product can't install or specification is wrong, the company provides the return or exchange service, return or exchange the customers please make sure that the goods are intact, and bear the freight back and forth. The receipt of the customer, if the product quality problems, please contact me within 7 days after receiving the company, provide relevant quality problem photos, our company will give you a refund or a replacement in the first time, because I already have carefully checked before shipment, so late will not provide this service, also please understand.

have carefully checked before shipment, so late will not provide this service, also please understand.
